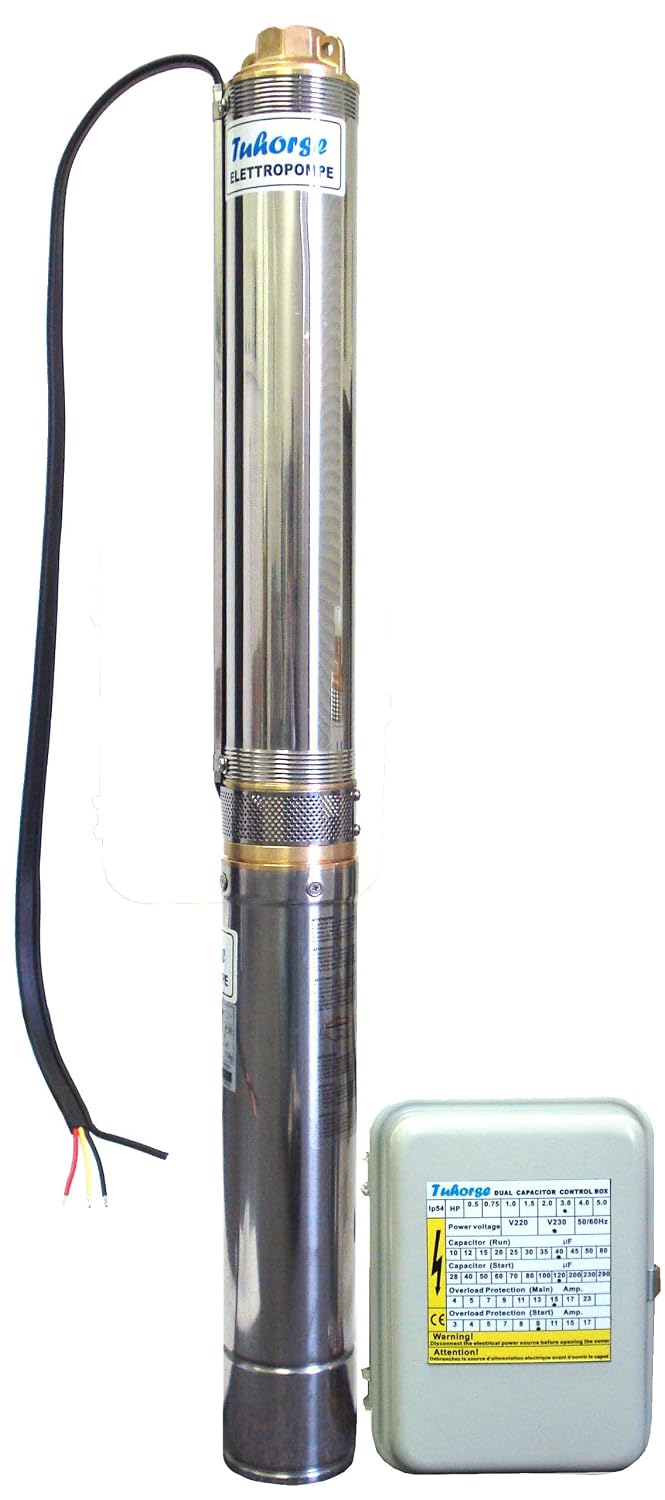

3 HP 4" Submersible Well Pump Complete Set Incl Motor, Pump-end and Control Box. 620ft Maxhead, Rated 15gpm, 25gpm Max. 1-phase 230v, 60Hz, 2.2kw, 3450 rpm, (TH4-015-17) 1 Year Warranty

This complete submersible well pump set includes a 17 stage pump-end, a 3HP heavy duty oil cooled submersible motor, and a dual capacitor metal cased control box equipped with motor overload protectors. Flow at typical depth: 21GPM at 184ft., 17GPM at 360ft., 14GPM at 442ft. 10.5GPM at 560ft., 7GPM at 590' Connector terminal inside the control box accepts up to AWG #8 solid wire or #6 stranded wire. This pump runs on 230V, 60Hz, Single Phase Power, and the motor uses 3 wires + 1 ground wire. Net weight 42Lb.(20Kg); Net length: 45.5” (1000mm). 1 year warranty. external check valve(not included) is required in a water tight system but is not required for free flow applications.

• Just slightly under 4” diameter, fits 4" and larger wells
• 1.25 inch NPT brass outlet (discharge)
• 17 Stages. Cut off head 620feet. Max flow: 25GPM, rated 15GPM
• Metal cased control box includes a 120uF start and 40uF run capacitor
• Meets NEMA industrial standards, manufactured under ISO 9001:2000, conforms to IEC34-ICE standards.
