SC-8108 Digital Twisted Wire Meter Test Cat5 RJ45 STP UTP LAN Phone Coaxial Network Cable Tester Equipment

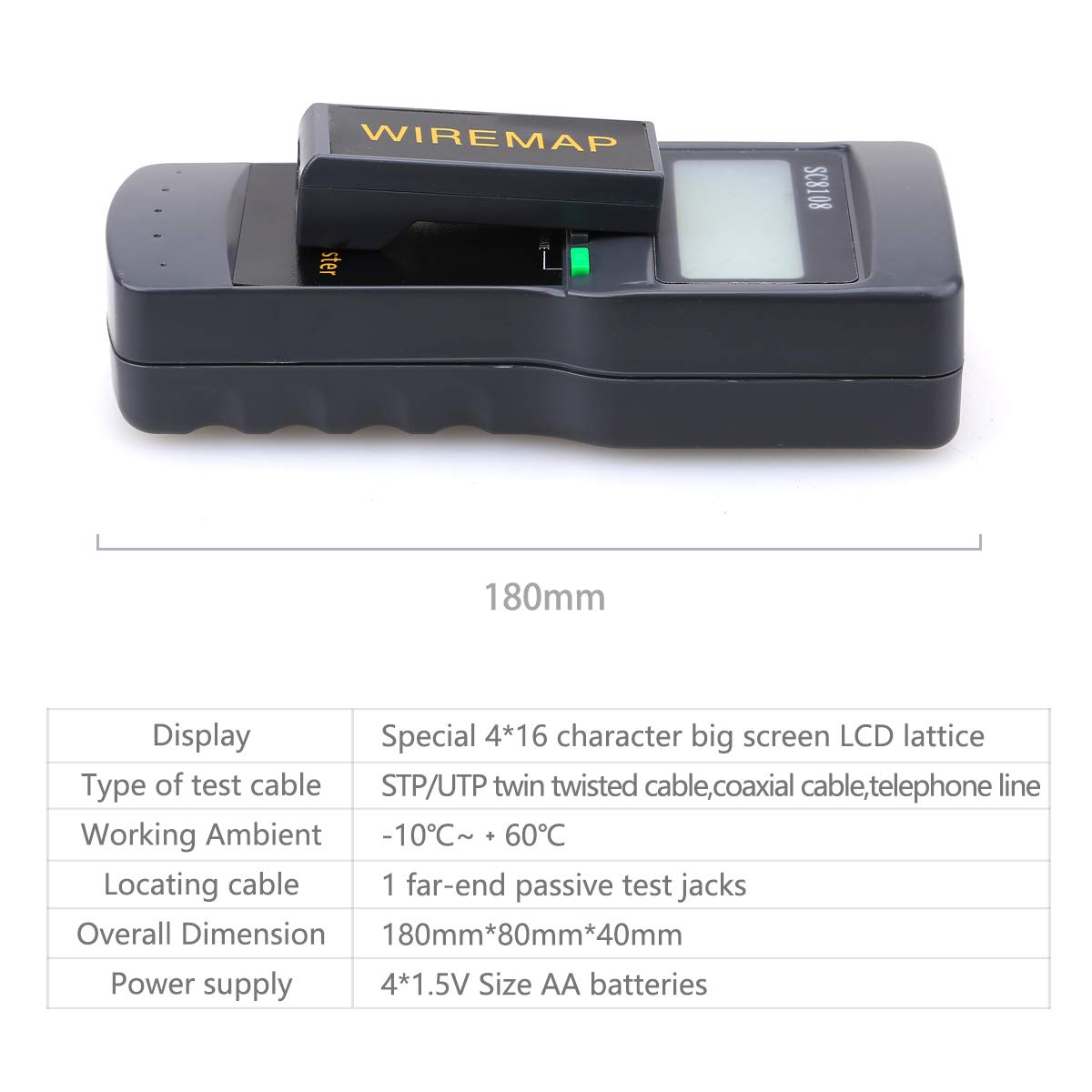

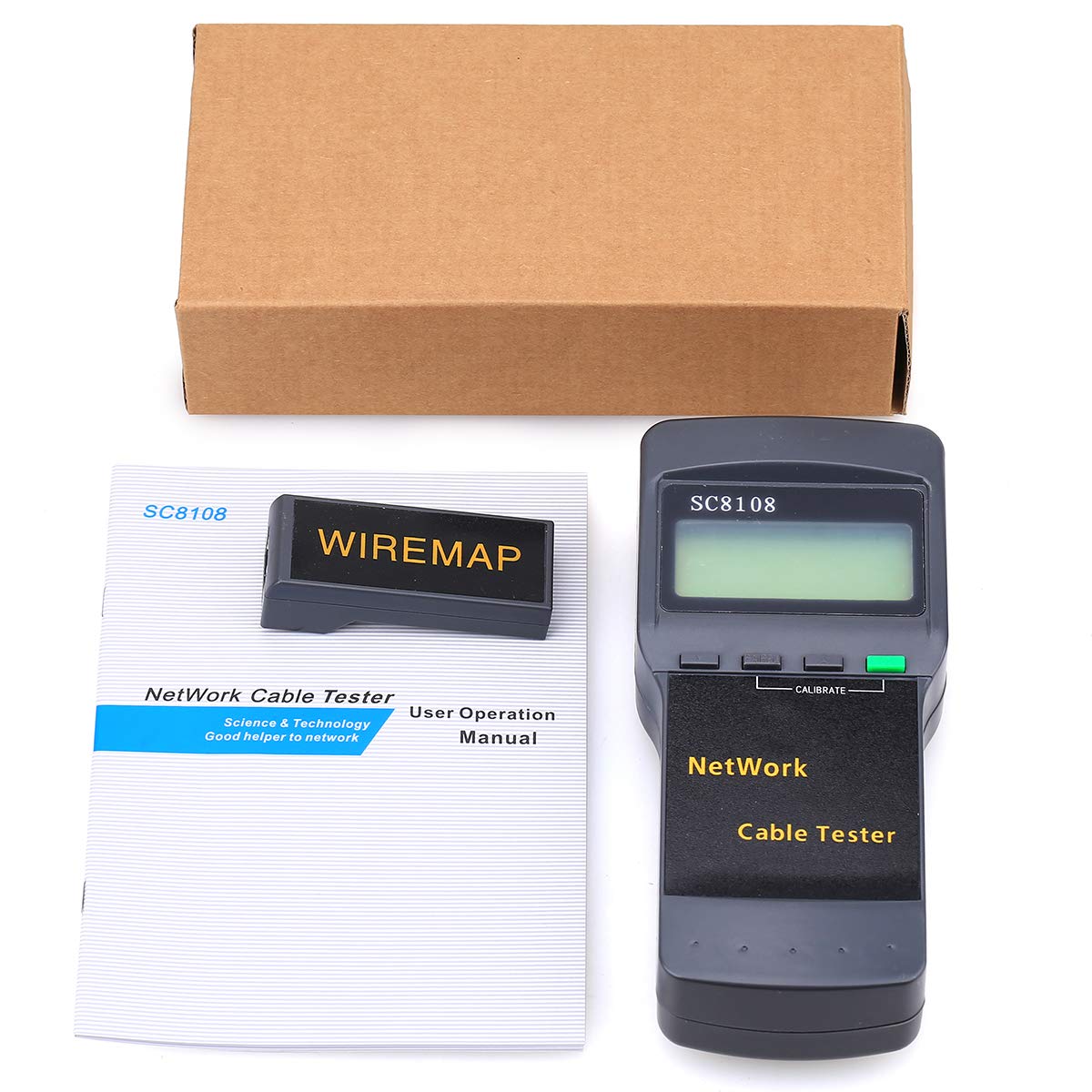

Features: Automatically time-delay shut off With far-end passive test jacks included in the set Self-checking and automatically compensate any change in battery capacity or ambient temperatureComplete set includes: 1 x Network Cable Tester 1 x Far-end test jack (ID1) 1 x English Instruction booklet Specifications:Overall Dimension Main Tester: 180 x 80 x 40mm Remoter identifier: 77 x 31 x 21mm Power: Main tester uses 6V DC for power supply (not included in the set) Display: special 4 x 16 character big screen LCD lattice (valid visual field 61.6 x 25.2mm) Type of cable tested: STP / UTP twin twisted cable, coaxial cable Ambient temperature in work: -10~60°C Tester Port Tester: RJ45 master port (M), tester LOOPBACK RJ45 port (L) Remote identifier: RJ45 port (R) Length Measurement of Twin Twisted Cable Scope: 1~305 M (3~1000 ft) Calibration accuracy: 3% (±0.5M or ±1.5ft) (calibrating cable >10M) Shipment Accuracy: 5% (±0.5M or ±1.5ft) (AMP, AT&T Class 5 cable) Display: M or ft Length Calibration: User can calibrate cable length by himself with a given length cable. The length of calibrating cable is more than 10M Wire Sequence and Locating Cable Error: Check errors such as open circuit, short circuit, and reverse connection. Locating Cable: Trace cable among a group of unknown cables

• One person is enough to complete cable continuity check.
• Check wiring error in 5E, 6E, coaxial cable such as open circuit, short circuit, jumper wire, and reverse connection.
• Measure cable length and determine the distance short circuit for LAN cable
• Simple and easy operation with big screen to display result.
• Portable unit with long battery life (wait-case 50 hours)
