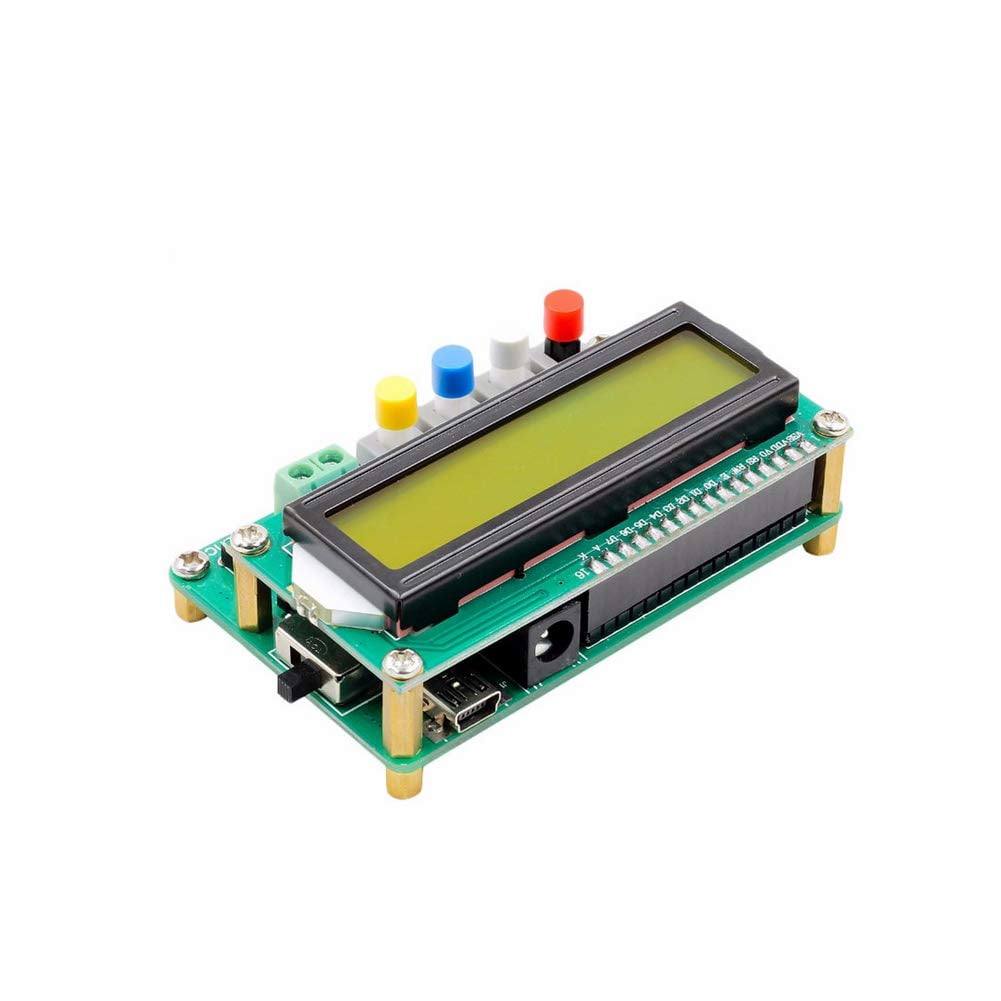

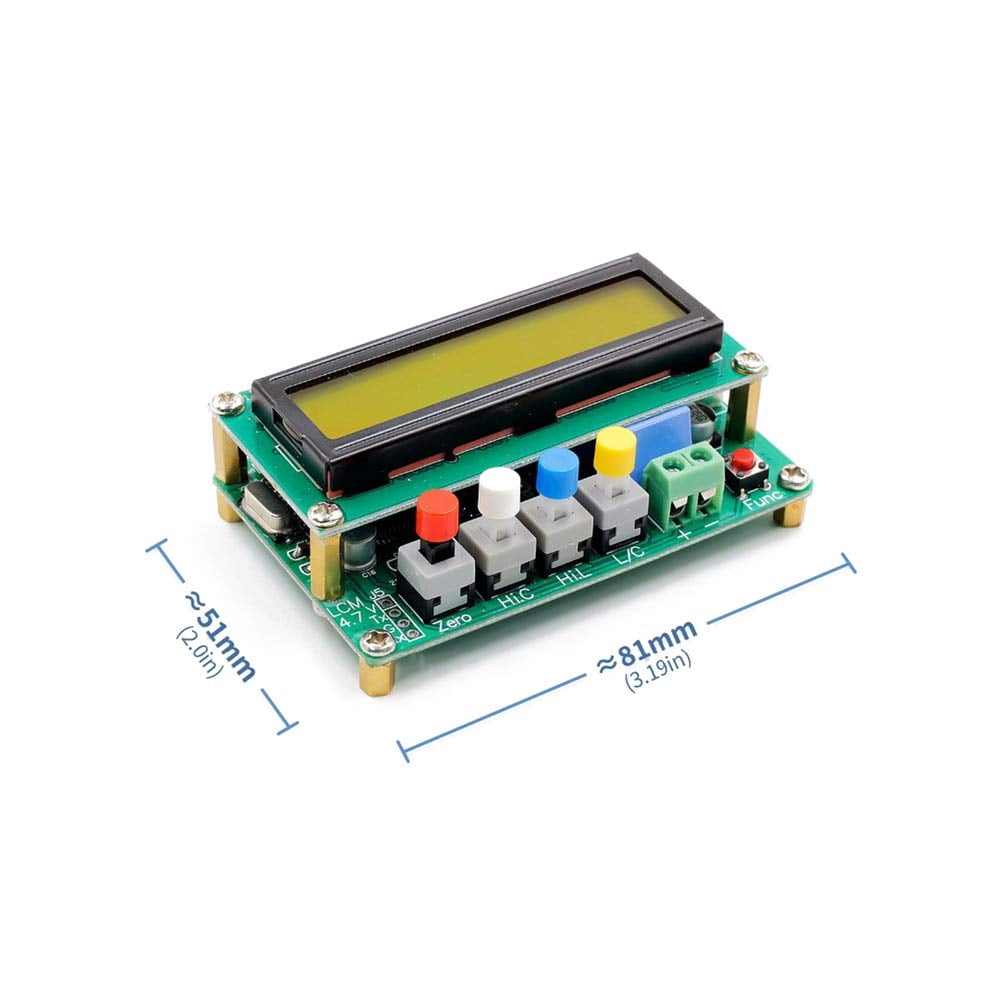

Treedix LC100-A Digital L/C Meter LC100A Multimeter 4 Gears Capacitance and Inductance Meter

<p>Specification：<br>Measurement accuracy: 1%<br>Capacitance measuring range: 0.01pF-10uF<br>Minimum resolution: 0.01pF<br>Inductance Range: 0.001uH-100mH<br>Minimum resolution: 0.001uH<br>Large inductance measurement range: 0.001mH-100H<br>Minimum resolution: 0.001mH<br>Large capacitance measuring range: 1uF-100mF<br>Minimum resolution: 0.01uF<br>Test frequency: Capacitors, inductors gear: about 500kHz; Large inductance gear: 500Hz<br>Effective display digits: 4<br>Display: 1602 LCD<br>Power supply: mini USB interface or DC5V power supply<br>SMD soldering components, stable and reliable<br>Can display current test frequency value<br>Wide measurement range, high accuracy, small size, light weight and convenient to carry</p> <p>Four Gears optional:<br>C Gear - Capacitance (0.01pF~10uF)<br>L Gear - Inductance (0.001uH~100mH)<br>Hi.L Gear - Large Inductance (0.001mH~100H)<br>Hi.C Gear - Large Capacitance (1uF~100mF)</p> <p>Package included:<br>1 x LC100-A Digital L/C Meter</p>

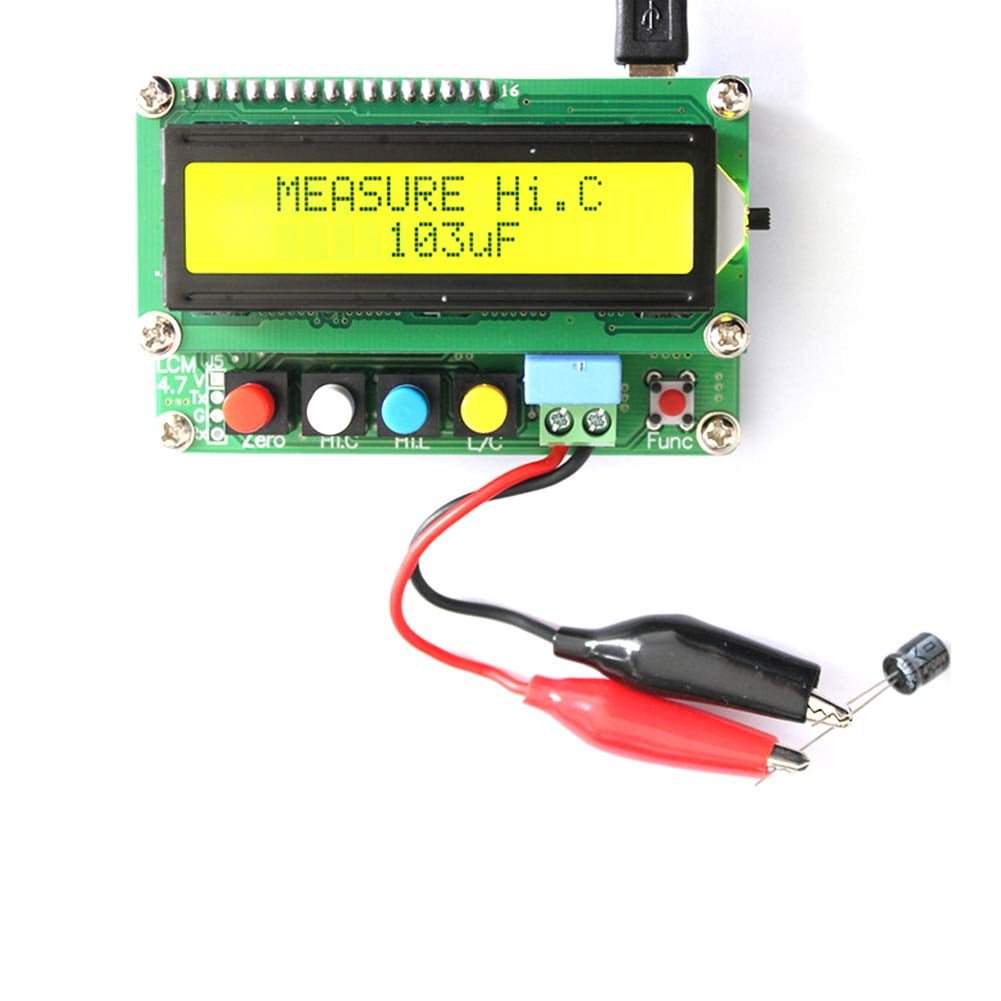

• LC100-A multi-function inductance and capacitance measuring instrument is based on the principle of LC resonance, with high-speed microcontroller for precision measurement calculation, can measure inductance below 1uH and capacitance less than 1pF.
• LC100-A multi-function inductance and capacitance measuring instrument has four measurement gears, all gears are auto range, which is very convenient to use.
• You can use mini USB interface or the DC socket 5V power adapter to power the instrument. Note: The power supply voltage is 5V. If you use a DC plug adapter, please confirm the polarity is the inner hole pole and the outer circumference is negative.

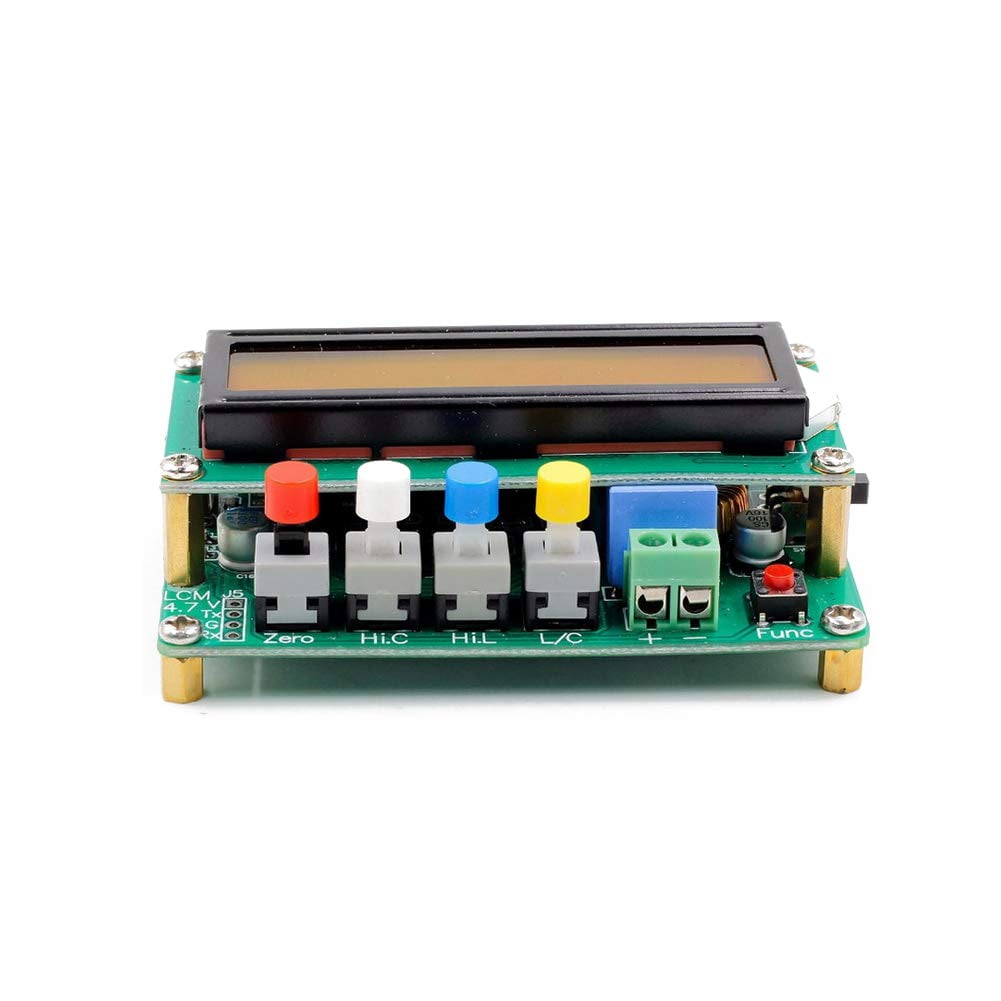

• There are a total of 5 buttons, Red button for reset, White button for Hi.C Gear, Blue button for Hi.L Gear, Yellow button for L/C select and a small red extended function button.
• Suitable for microwave production and switching power supply transformer, filter inductance measurement, etc.
